In the world of CNC (Computer Numerical Control) machining, programming is key to making sure machines run smoothly and accurately. Two important codes used to control CNC machines are G-code and M-code. These codes direct the machine’s actions, from movement to machine functions. Let’s break down what G-code and M-code are, and why they are so important.
G-Code: Directing Machine Movement
G-code is the most commonly used language in CNC machining. It controls the movement of the machine’s tool, telling it how to move in a straight line, curve, or along specific paths. Every action the machine makes, such as moving the cutting tool or drilling a hole, is defined by G-code commands.
Common G-code instructions include:
- G01: Linear movement in a straight line
- G02: Clockwise circular movement
- G03: Counterclockwise circular movement
- G43: Tool offset for tool length compensation
Without G-code, the CNC machine wouldn’t know where or how to move, making it impossible to complete the required task. It’s the “language” the machine understands to perform the precise motions needed for high-quality parts.
M-Code: Controlling Functions
M-code is used for controlling miscellaneous functions in CNC machining. While G-code handles movement, M-code controls things like the spindle turning on or off, coolant flow, and even pausing the machine for a break.
Some commonly used M-codes are:
- M00: Program stop (pauses the machine)
- M03: Turns the spindle on in a clockwise direction
- M05: Stops the spindle
- M08: Turns the coolant on
M-code ensures the machine can perform necessary tasks that aren’t directly related to moving the tool. This includes managing things like the speed of the spindle, coolant use for cooling the tool, and stopping the program when necessary.

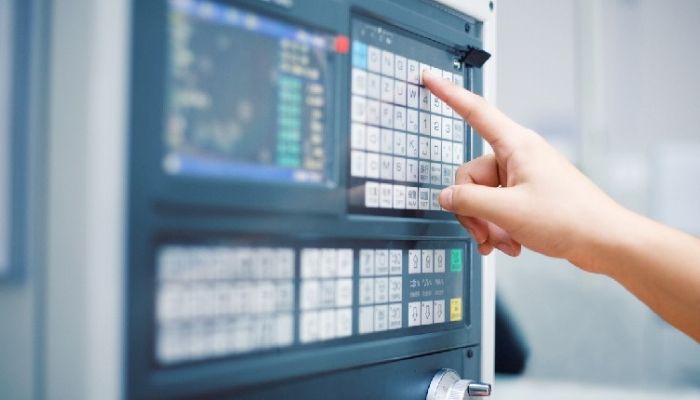

How G-Code and M-Code Work Together
G-code and M-code often work together to complete a CNC machining task. While G-code tells the machine where and how to move, M-code manages the additional functions needed to run the machine smoothly. For example, while G-code moves the tool along a set path, M-code might tell the machine to turn on the coolant or stop the spindle once the operation is complete.
Conclusion
In CNC machining, G-code and M-code are vital programming codes. G-code manages the movement of tools, while M-code takes care of machine functions like turning on the spindle or controlling the coolant. Together, these codes help CNC machines perform accurately, safely, and efficiently to produce high-quality parts.
